MGS – MITSUBISHI GENERATOR SERIES

MITSUBISHI ENGINES & TURBOCHARGERS MAKE BEST PERFORMANCE OF MITSUBISHI GENSETS

MGS has continually introduced upgraded its engine products since the inception of business in 1917, and now the MGS provides a higher generating power rating and more advanced control systems than ever before, with proven reliability based on the continued research and development. The best performance matched engine system configured with Mitsubishi diesel engines and Mitsubishi turbochargers, which are engineered and manufac- tured in the same facility, is certain to result in the high productivity and improved fuel economy in the MGS power generation. MGS – All Mitsubishi assembled, tested and supported

HIGH RELIABILITY AND QUALITY IN MGS

It takes no more than 10 seconds from receiving the signal to start reaching the rated voltage and frequency, which minimizes the impact of power outages.

QUICK START

Our compact MGS series makes more space to have servers or other devices in your facilities

SPACE SAVING

FIVE NINES ENGINEERING

Our ultimate goal is 99.999% availability. MGS provides total engineering and service sup- port to accomplish 99.999% availability of your power systems.

FULL ROAD

Mitsubishi’s fuel injector and high- pressure fuel pump make it possible to burn the fuel completely and achieve clean emission gas.

CONCEPT OF DIESEL ENGINE GENERATOR SET FOR DATA CENTER

• Operating in 24 hours/7 days
• Unlimited hours of operation at 100% load Factor
• Redundancy of the eletric power supply facility
• The demands of diesel engine generator sets from the data centers are mainly 3 points in below

STARTABILITY	SIZE	GLOBAL STANDARD
• Quick start • High reliability	• Power ratio • Footprint	• Apply ISO standard • Meet requirement of Uptime Institute Tier III/Tier IV objectives

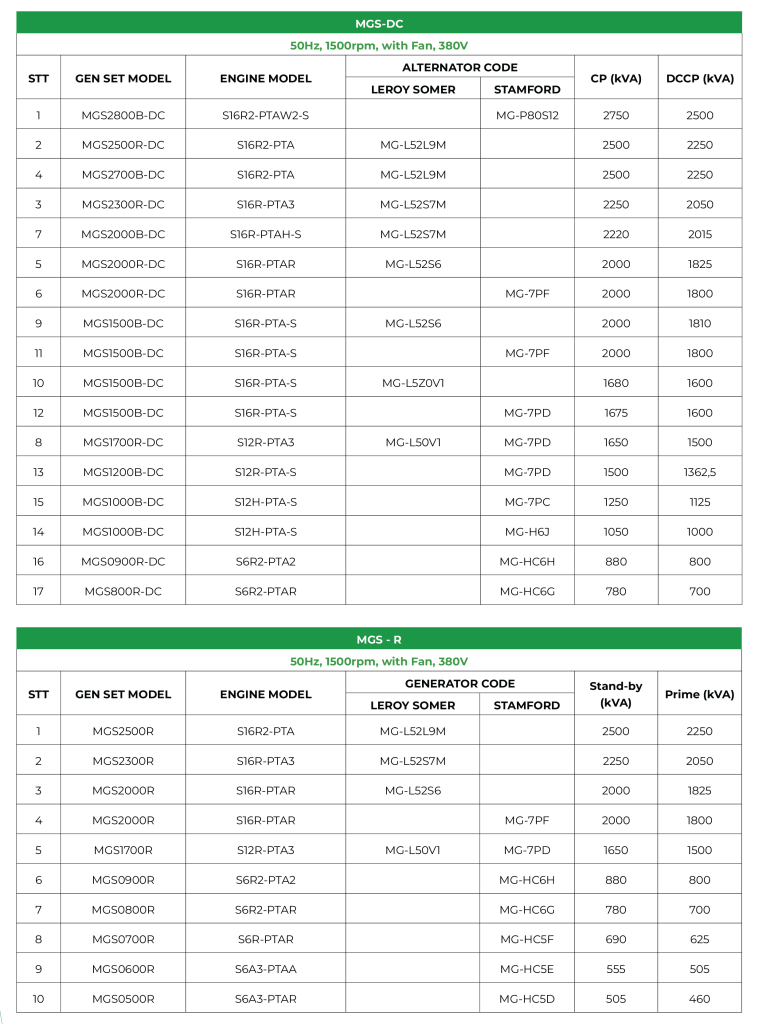

PRODUCT LINE-UP: DATA CENTER

RELIABILITY AND QUALITY IN POWER GENERATION

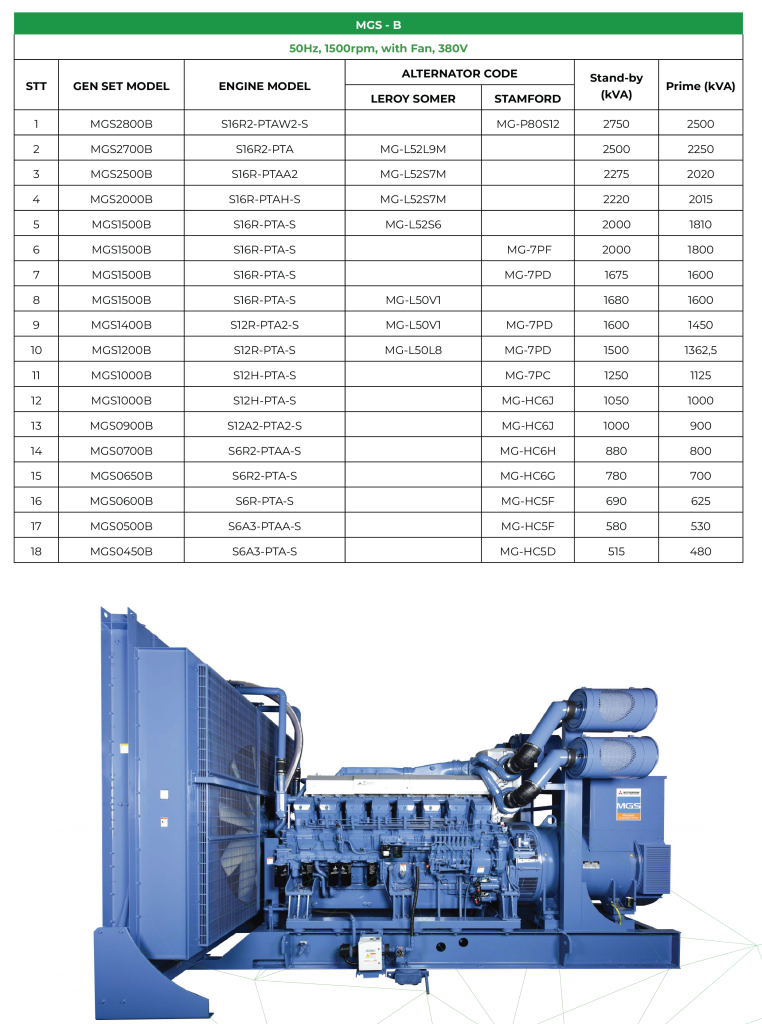

The growing strength of the Mitsubishi Brand name: MITSUBISHI GENERATOR SERIES “MGS The core of the MGS genset is now -S typed diesel engines for MGS Power Rating

MITSUBISHI DIESEL ENGINES

Ranging in capacity from 0.5 to 56,400 horsepower, Mitsubishi brand diesel engines offer a series of versatile power generating systems. Mitsubishi Heavy Industries, Ltd. has continually introduced upgraded its engine products since the inception of business in 1917, and now the MITSUBISHI GENERATOR SERIES “MGS” provides a higher generating power rating and more advanced control MGS systems than ever before, with proven reliability based on the continued research and development. The best performance-matched engine system configured with Mitsubishi diesel engines and Mitsubishi turbo-chargers, which are engineered and manufactured in the same facility, is certain to result in the high productivity. and improved fuel economy in the MGS Power Generation. Every unit is inspected and tested before leaving the factory and the test report is sent with the genset. MITSUBISHI MGS- All Mitsubishi assembled, tested and supported

DEPENDABILITY & DURABILITY IN POWER GENERATION

The best performance-matched engine and generator systems give world-class performance Response and stability designed to exceed user expectations in a variety of applications

MITSUBISHI DIESEL ENGINES

6 and 12 wire reconnectable windings provide a wide range of 3 phase voltage. The exciter field system remains at full strength, sustaining a high level of short circuit current at the ac generator output terminals by means of the excitation voltage via AVR powered by the independent winding, Permanent Magnet Generator (PMG) as a standard feature in the MGS genset, which is electrically isolated from the main alternator stator windings

The fully sealed, three phase RMS voltage sensing AVR maintains the voltage within the limits of +/-0.5% from no load to full load including cold to hot variations at any power factor between 0.8 lagging and unity allowing for a 4% engine speed variation, suitable for applications with greatly unbalanced or high non-linear loads associated with UPS systems. The AVR has built-in protection against sustained over-excitation, caused by internal or external faults. This de-excites the generator after a minimum of five seconds. THF is better than 2 % and a TIF is better than 50. Radio interface: Suppression is in line with the provision of VDE875 Class G and N.

NOTE1. 12 wire reconnectable windings are the features up to Code H6 models.
2,3. Up to Code K5 models have single phase voltage sensingand the voltage regulation within +/-10%, for 4% engine speed variation

Turbo-filter is standard and paper element dry type air-cleaner is available as an option.
